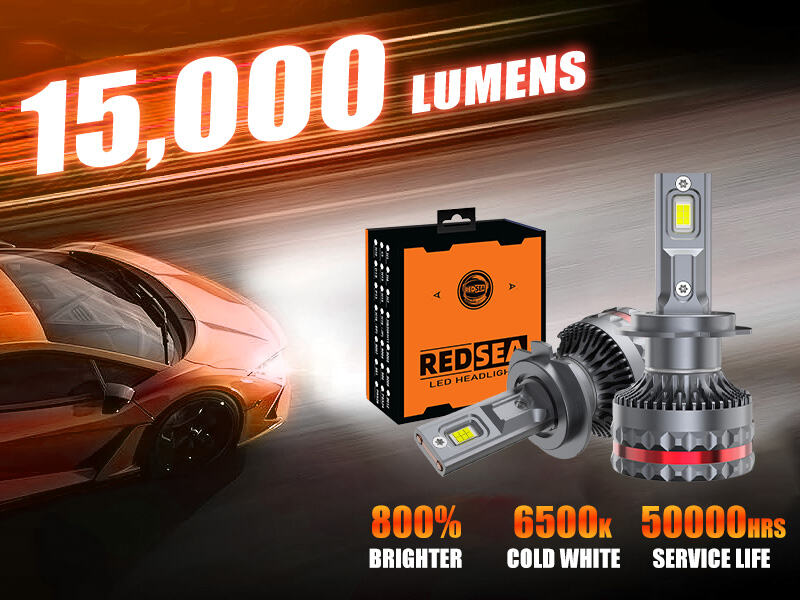

REDSEA R17 LED Headlight Bulbs 150W 15000lm

R17 — The High-Performance 150W Series LED Headlight Engineered for Thermal Excellence

The R17 LED Headlight embodies the philosophy of the Redsea 150W series: uncompromising performance built on a foundation of solid engineering. It pairs the staggering output of 15,000 lumens with a thermal management system that is both intelligent (CAN Bus) and mechanically superior (clamped heat pole). This makes it the ideal choice for B2B partners whose customers demand the very brightest, most reliable lighting solution available—a Car Lamp engineered not just to shine brilliantly, but to endure.

High-Density 150W Power Driver

The performance of any high-end Car LED Headlight begins with its power supply. The R17 is built around a specially engineered 150W driver circuit designed for the rigorous demands of sustained high-output operation. This isn't just about higher wattage; it's about intelligent, stable power delivery under the variable electrical conditions of a vehicle. The circuit features advanced voltage regulation and surge protection, ensuring consistent performance whether at idle or high RPM. This robust design prevents flicker, maintains the full 15,000lm output, and protects both the LED Chip and your vehicle's electrical system. For B2B clients, this translates to a reliable, high-performance Car light solution suitable for professional and heavy-duty applications, minimizing compatibility issues and warranty claims.

Unmatched 15,000 Lumen Light Output

Lumens are the definitive measure of usable light, and at 15,000lm, the R17 establishes a new benchmark within the high-performance segment. This extraordinary output provides approximately 700% more visible light than standard halogen bulbs, creating a transformative driving experience. The high-intensity, 6500K pure white light offers exceptional contrast, making road markings, debris, and potential hazards visible from a significantly greater distance. For fleet operators and safety-conscious drivers, this expanded visual runway translates directly to increased reaction time and enhanced situational awareness. The massive output is particularly effective in rural or poorly lit industrial areas, making the R17 headlamp a critical tool for operational safety.

Advanced 3570 CSP 6-Core LED Chipset

The 3570 CSP 6-core chip is selected for its optimal balance of power density and optical controllability. The Chip Scale Package (CSP) technology eliminates traditional packaging layers, placing the light-emitting material closer to the thermal substrate. This design reduces thermal resistance, allowing the chip to handle the high current required for 150W operation more efficiently. The specific arrangement of the 6 cores is calibrated to create a concentrated and uniform light source ideal for projector optics. This results in a brighter, more defined central hotspot and a cleaner overall beam pattern compared to chips with more dispersed cores. The efficiency of the CSP design also contributes directly to the product's impressive 15,000lm rating and long-term lumen maintenance.

Precision-Engineered Projector Beam Pattern

Effective light control is paramount, especially at this power level. The R17 led headlight bulb is optically engineered to excel in projector-style headlamp housings. The physical dimensions and the focal point of the 3570 CSP chip are meticulously designed to align with the projector's lens and cutoff shield. This synergy produces a beam pattern characterized by a razor-sharp horizontal cutoff line. The light is concentrated below this line, creating a wide, even spread for peripheral vision and an intensely bright hotspot for distance illumination, with virtually no wasteful or blinding upward glare. This makes the R17 a responsible and exceptionally effective upgrade for vehicles equipped with projectors, ensuring powerful light is placed precisely where it is needed on the road.

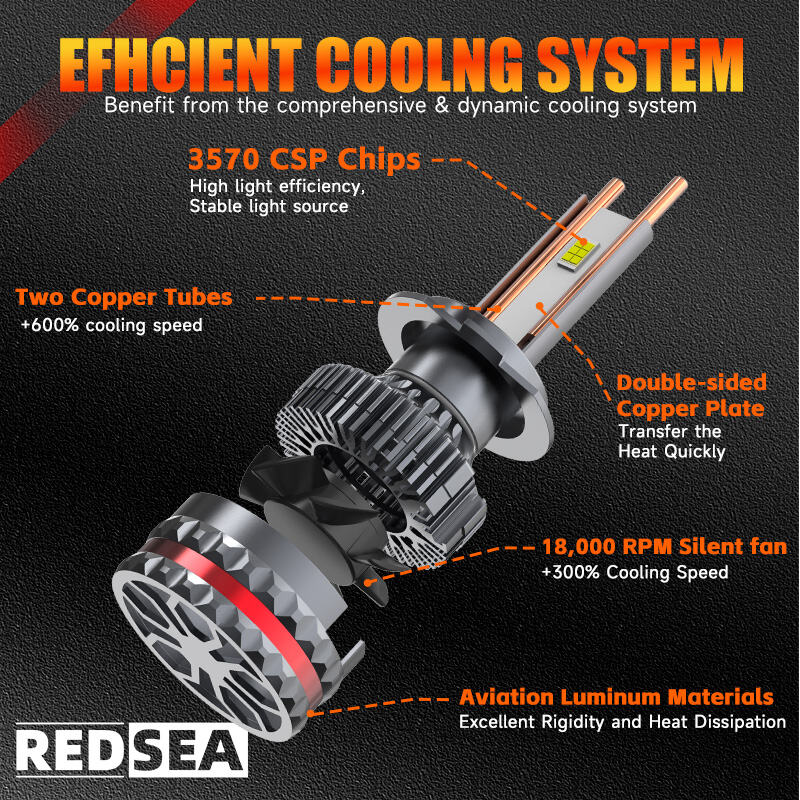

Revolutionary Tri-Stage Thermal Management System

This is where the R17's engineering shines. Managing the substantial heat from a 150W, 15,000lm system requires innovation. The R17 employs a proprietary three-stage approach:

Stage 1: Revolutionary Heat Transfer – The Clamped Light Pole. This is the key upgrade. Moving beyond traditional slot-in designs, the R17 uses a two-copper tube + aluminum clamped light pole system. The copper tubes are firmly pressed and clamped within a split aluminum pole, creating a vastly larger and more intimate contact surface area. This "half-shell" clamping method doubles the thermal conductivity between the heat source (copper tubes) and the primary heat sink (light pole), allowing heat to be pulled away from the LED chip with dramatically improved efficiency.

Stage 2: Primary Heat Dissipation – Aluminum Fins. The heat transferred to the clamped aluminum pole is then conducted into a dense array of vertically stacked aluminum fins. These fins provide a massive passive surface area for heat to radiate into the surrounding air.Stage 3: Active Cooling – Integrated High-Performance Fan. To ensure maximum airflow in all conditions, especially at idle or in high ambient temperatures, a silent, durable fan is integrated at the base. This fan actively pulls cool air across the aluminum fins, creating a forced convection effect that can increase heat dissipation by over 50% compared to passive systems alone.

This synergistic Cooling system maintains the LED junction at a safe temperature, ensuring consistent performance, preventing thermal throttling of light output, and ultimately guaranteeing the Car LED Headlight achieves its rated 50,000+ hour lifespan. The clamped pole design is not an incremental change; it is a fundamental re-engineering that defines the R17's reliability advantage.
